Title
100W PETREL LED STREET LIGHT introduction

Appearance:

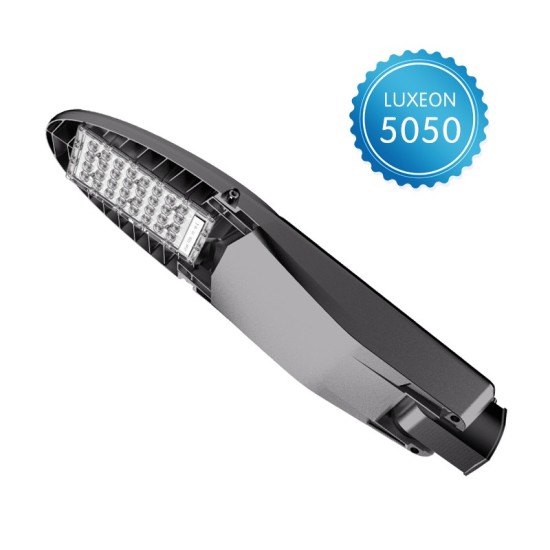

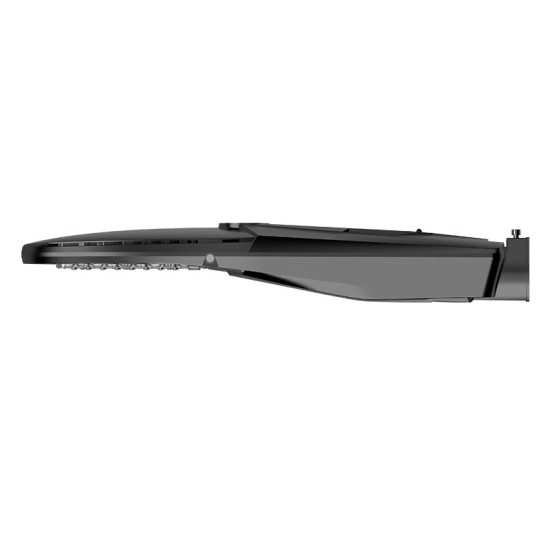

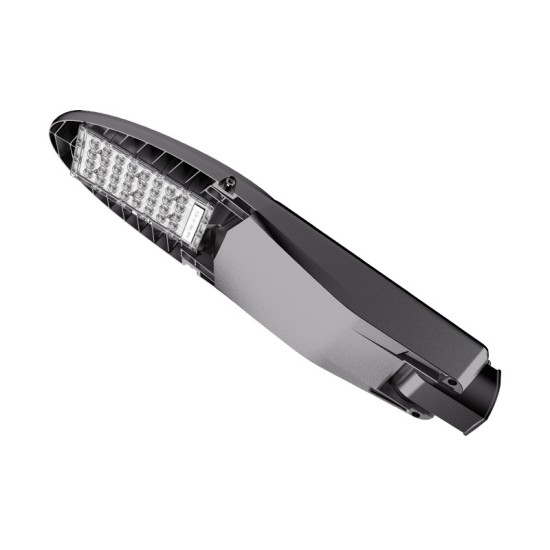

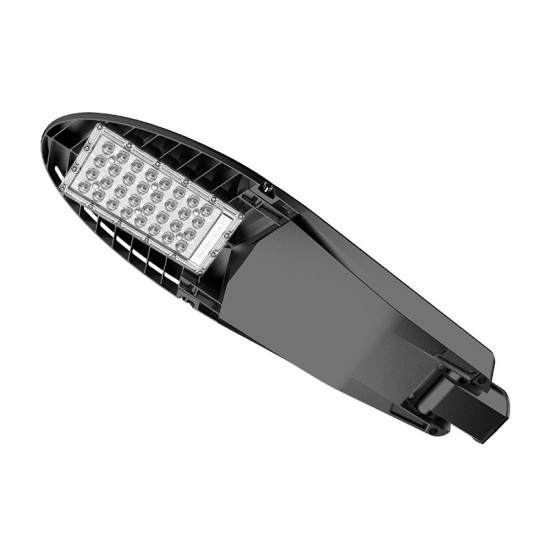

100W PETREL LED STREET LIGHT appearance

Application:


Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

Features:


  • The shell adopts die-casting integral molding, which has higher safety and longer life.
  • The product has a beautiful appearance and curved lines, which effectively reduces wind resistance.
  • The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation.
  • Using Philips 3030 lamp beads, the luminous efficiency is as high as 150lm/w.
  • The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability.
  • The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation.
  • Waterproof and dustproof grade: IP66, protection grade IK10.
  • The product is equipped with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.
General Information
Product Model LY-ST81080XX / LY-ST81090XX / LY-ST81100XX / LY-ST81120XX
Product Information
LED Quantity (pcs) 32
Power 80W / 90W / 100W / 120W
Luminous Flux(lm) 12800 / 13950 / 15000 / 16800
Luminous Efficiency(lm/w) >160 / >155 / >150 / >140
Chip Brand Luxeon 3030
CRI (Color Rendering Index) 70/80
Beam Angle TYPE III 150*80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
IP Rating IP66 / IK10
Material ADC 12
Installation Height 6m-10m
Input Voltage AC100V~277V 50/60HZ / DC12-24V
Net Weight(kg) 4.4
Size(mm) L703*W200*H109mm (L27.68*W7.88*H4.29Inch)
LED Driver Sosen SS-100VH
Light Body Color Black/Grey
Storage Environment Temperature -20 to +60°C, Relative Humidity 5~95%
Working Environment Temperature -20 to +45°C, Relative Humidity 20~90%
Dimmable 1-10V/DALI
Package Details
Package Size(mm) L743*W242*H154mm (L29.25*W9.53*H6.06inch)
Package Quantity(Pcs) 1
Gross Weight(kg) 5.2
Other Information
Test Report Provided
CoC(Certificate of Conformity) Provided
Inspection Report Yes
Certificates CE, RoHS, FCC, ISO 9001
Warranty 3 Years
