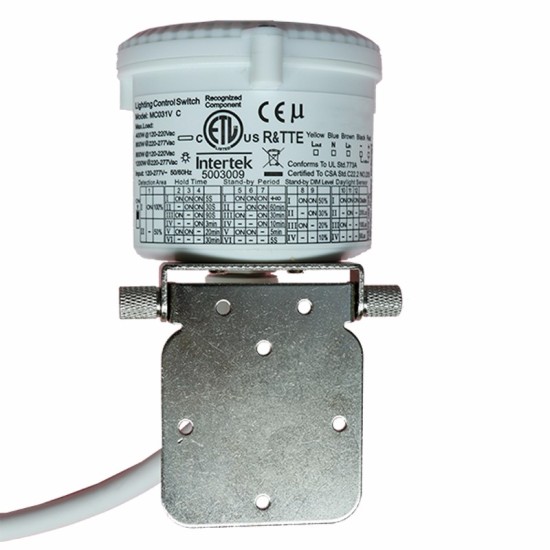

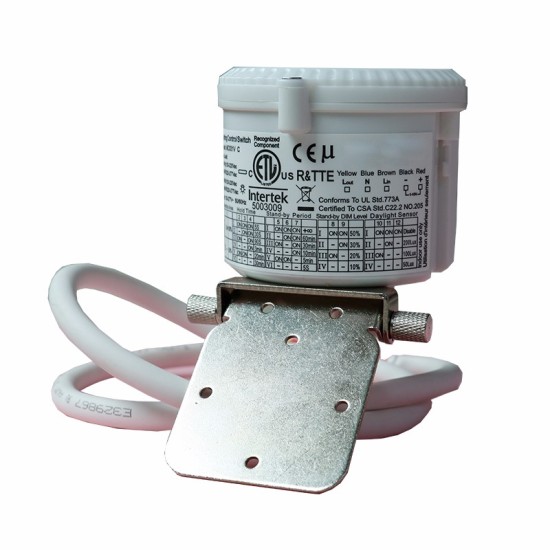

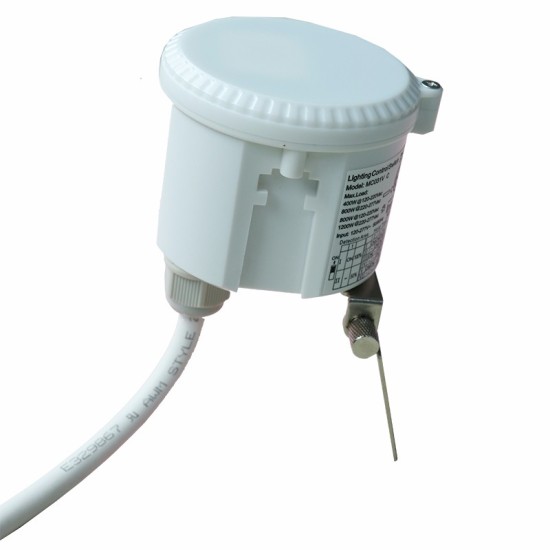

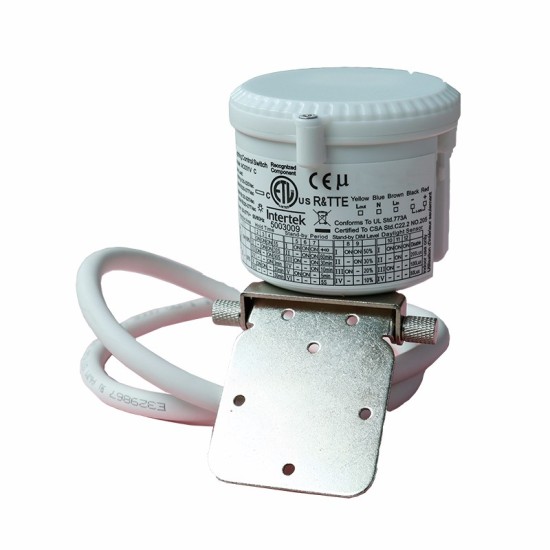

LY031V---Light Control Sensor

LY031V---Light Control Sensor

IP65 microwave motion sensor for warehouse

·Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.
·Built-in adjustable daylight sensor.
·1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
·Detection area, time delay and daylight threshold can be precisely set via DIP switch.
·Wide detection area, range up to 16m in diameter and mounting height 15M Max. suitable for warehouse use.
·Special clip for installation easy to be fixed with high bay.
·3 kinds of installation (A . B . C )


The MC031V sensor is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. except the higher mounting height 15m Max.


The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.

Also, the 1-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.

Technical Data：

Operating voltage：120~277Vac，50Hz/60Hz

Rated load：400W@120Vac, 800W@220-277Vac (inductive)  /   800W@120Vac, 1200W@220-277Vac (resistive)

HF system：5.8GHz±75MHz, ISM wave band

Transmitting Power：<0.5mW

Power Consumption：≤0.8W(standby) <1.5W(operation)

Detection Zone：Max.(D x H): 16m x 15m

Detection Sensitivity：100% / 50%

Hold Time：5s / 30s / 90s / 3min / 20min / 30min

Daylight Sensor：50lux / 100lux / 200lux / Disable

Stand-by Period：5s / 5min / 10min / 30min / 1h / Disable

Stand-by Dimming Level：10% / 20% / 30% / 50%

Mounting Height：15m Max

Motion Detection：0.5~3m/s

Detection Angle：150°(wall installation)    /     360°(ceiling installation)

Operating Temperature：-35 ℃ ~70

Dimming Function

3-step dimming function

When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective.
