Light Control Sensor

Specifications and Characteristics

Turn-On Light Level：10 Lux or at customer’s request

Turn-Off Light Level：30Lux or at customer’s request

Optional Range of Turn On to Turn Off Ratio：1:1.5 to 4

Turn-On Time Delay：3-15s

Turn-Off Time Delay：3-15s

Operating Temperature：-40℃ to +70℃

Relay：30A

MOV Surge Protection：90J，160J，320J，360J (4 options)

Energy Consumption：Less than 1Watt(120V<0.5W)

Electrical Life：5,000 operations at ANSI specified load test levels

Sensor Typen：Silicon Photocell

Housing：UV stabilized impact resistant polycarbonate (PC)

Failure Mode：Fail On (standard), Fail Off (for your option)

Size：74mm (suitable for North America market), 80mm

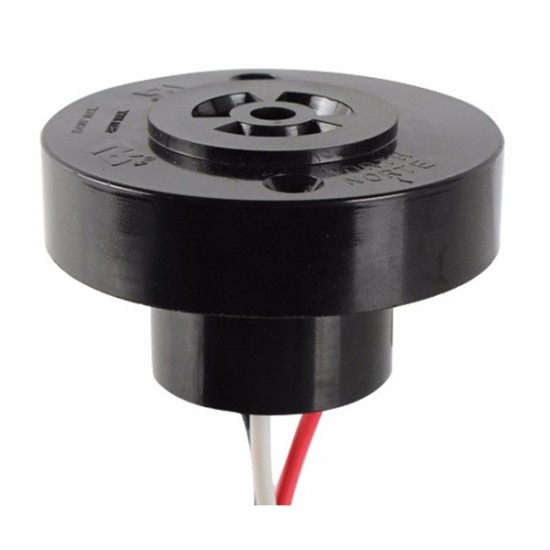

·The twist-lock type photocontrols are manufactured as per UL773 and ANSI C136.10 standards. They are mainly used in automatically controlling the outdoor lighting fixtures with mating receptalces. If the photocontrol is temporarily not to be used, the shorting cap can be used instead
·Earlier turning-off in dawn for saving more energy
·Easy-to-maintain Twist-lock (ANSI C136.10) & Fail-On mode
·IP65 protection while installed
·5-20 seconds time-delay switching-off for luminaires protection
·Unique On-Off levels for multi-volts
·Photodiode sensor
·Electromagnetic DC relay switching
·UV stabilized Polycarbonate cover

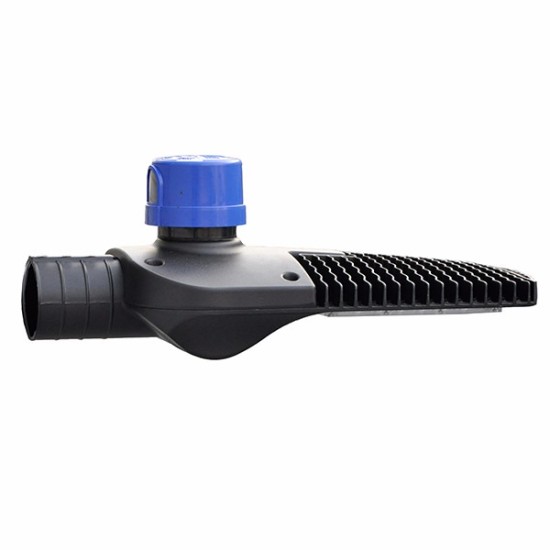

·Suitable for high-end LED outdoor lighting fixtures
·Multi-volts design: 105-305V, It can work properly even at the volts as low as 80VAC

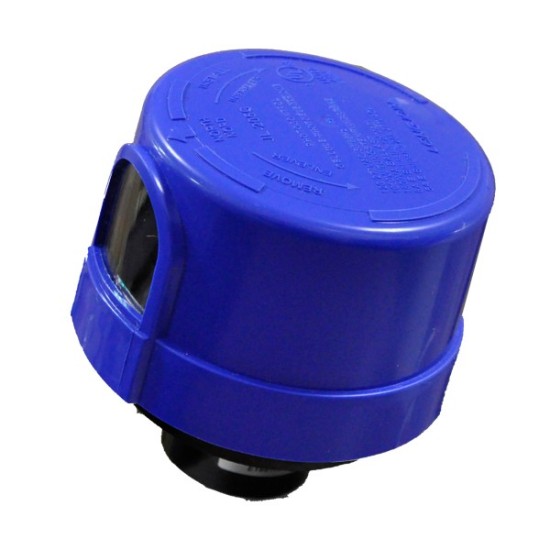

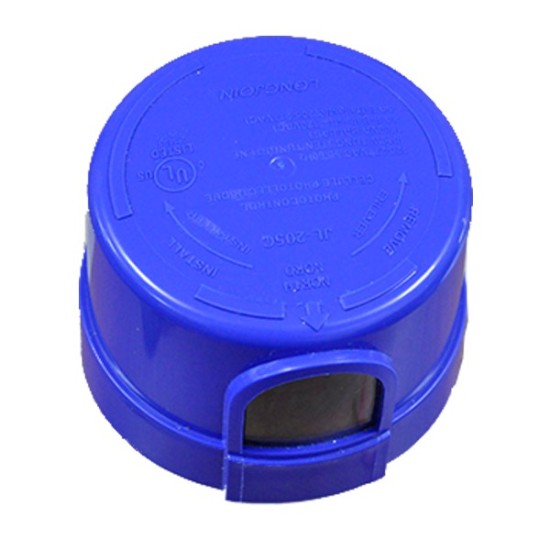

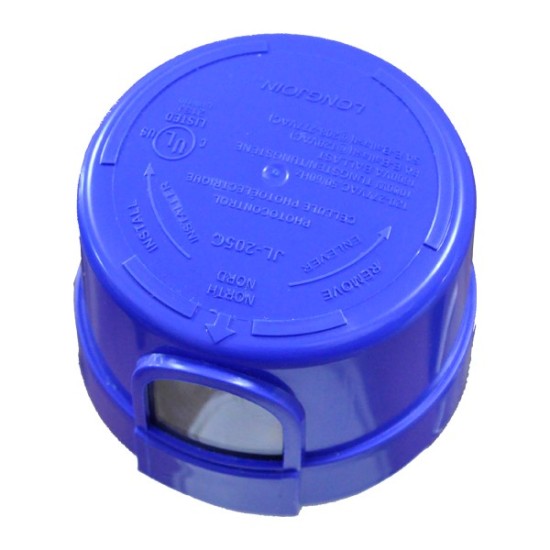

·Blue cover standard for 120/240VAC (105-305VAC)
