3030 LED Module

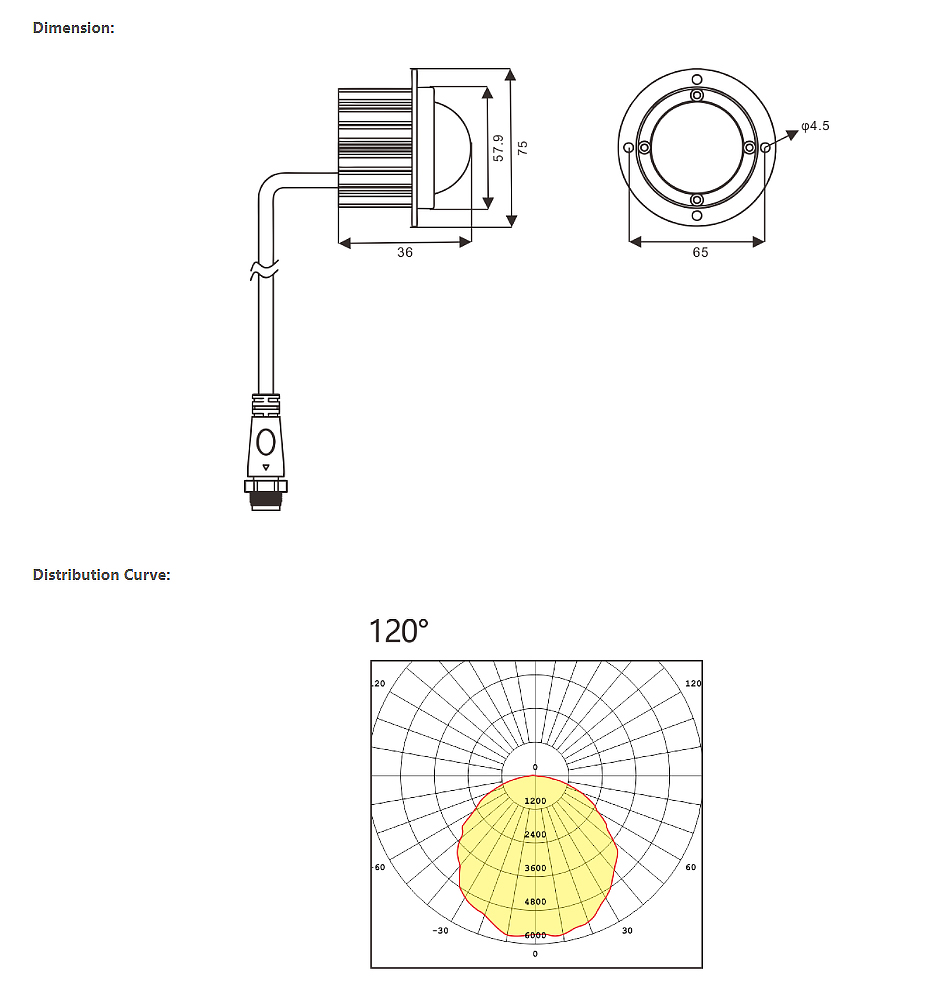

Appearance:
Application:
Suitable For:
-
Urban and Public Lighting
- Road Lighting (highways, national roads, provincial roads, city roads)
- Streets and Alleys (urban and rural streets, village roads)
- Parks and Squares (urban parks, leisure squares, pedestrian streets)
- Parking Lot Lighting (malls, office buildings, public parking areas)
-
Rural and Remote Areas
- New Rural Development (village roads, farmyards)
- Remote Mountainous Regions (off-grid areas)
- Pastoral and Fishing Villages (grasslands, coastal areas)
-
Commercial and Industrial Applications
- Factories and Warehouses (outdoor workspaces, cargo areas)
- Gas Stations (new energy stations, service areas)
- Commercial Plazas (large shopping malls, retail centers)
-
Agriculture and Outdoor Scenes
- Farms and Orchards (nighttime farming operations)
- Greenhouses (plant growth lighting)
- Aquaculture Farms (fish ponds, livestock farms)
-
Schools and Sports Facilities
- School Playgrounds and Stadiums (outdoor running tracks, football fields)
- Indoor Sports Arenas (basketball courts, gymnasiums, multipurpose halls)
- Campus Pathways and Dormitory Areas (student walking paths, outdoor study areas)
-
Tourism and Outdoor Adventures
- Scenic Area Lighting (mountain resorts, lakes, historical sites)
- Camping and Outdoor Survival (tent lights, portable solar lamps)
- Outdoor Billboards (highway advertisement lighting)
-
Emergency Rescue and Disaster Relief
- Natural Disaster Response (earthquakes, floods, typhoons)
- Military and Border Patrol (border surveillance, military outposts)
- Emergency Backup Lighting (power outage emergency lighting)
- It is applicable to playground lighting, stadium lighting, plaza lighting, and so on.
- New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lights. Etc.
Features:
- Fin type desig with optical PC lens provide IP66 rate under super heat dissipation.
- Excellent operating temperature -40°C ~ 50°C.
- Customized structure design could be matched with traditional light source under standard housing fixture.
- 60°,100°,120°beam angle for LED garden lamp.
- High safety,low voltage input voltage is safe for people, which effectively prevents electric shock and electric leakage.
- Easy to assemble and maintain with national standard M15 electrical interface.
- Achieved plugged and play,only need loosening the screw during maintenance.
- Green product,no UV,IR radiation or mercury pollution.Passed IEC62471.
- Life-span over 50,000 hours,5 years warranty.
INSTALLATION:
- Ensure all power disconnected and turn off the power switch.
- Knowing the inside diameter of the circular ring,then choose suitable hook for the lamp.
- Fix the hook before installation and enable it to support over 3 times weight of the lamp. Connect the lamp with hook and make it safe.
- Connect the input cables of lamp to power supply mains and wrap up the cables with insulated sleeve.
- Switch on the power, the lamp will light on. Refer to the left figure.
- In case of any abnormal phenomenon or problem, please switch off the power supply then contact with Genice customer service center.
- Stock: In Stock
- Model: 833435
$18.00
Ex Tax: $18.00
